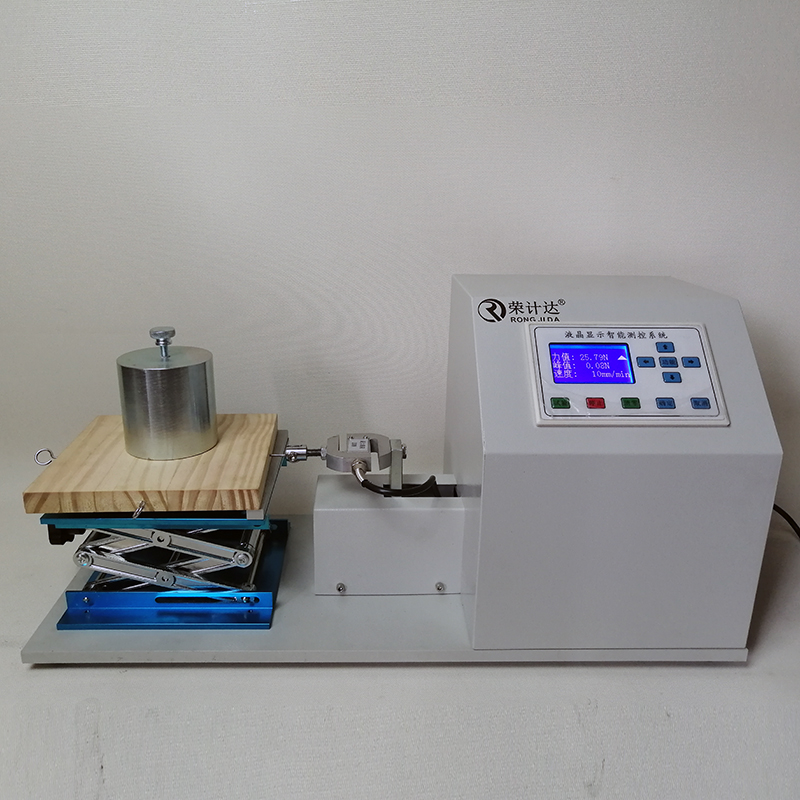

FH-100型地坪涂装材料防滑性能试验机

一、简介：

用于测量地坪涂装材料、地面石材、陶瓷砖、塑料薄膜和薄片、橡胶、纸张、纸板、编织袋等材料滑动时的静摩擦系数和动摩擦系数。通过测量材料的滑爽性，可以控制调节材料生产质量工艺指标，满足产品使用要求。另外还可用于日化用品的滑爽性能测定。采用触摸屏控制，友好的人机操作界面。仪器内部设有行程限位和正负力值过载保护功能。具有测试速度可调、负荷测量精度高、操作方便等特点。

1. Introduction

It is used to measure the static friction coefficient and dynamic friction coefficient of floor coating materials, ground stones, ceramic tiles, plastic films and sheets, rubber, paper, cardboard, woven bags and other materials when sliding. By measuring the slipperiness of the material, it is possible to control and adjust the production quality process index of the material to meet the product use requirements. In addition, it can also be used to determine the slip performance of daily chemical products. Using touch screen control, friendly man-machine interface. The instrument is equipped with travel limit and positive and negative force value overload protection functions. It has the characteristics of adjustable test speed, high load measurement accuracy and easy operation.

二、技术参数：

★测力范围：0-100N、0-200N、0-500N（可选）

★测力精度：0.1

★重块重量：50N，4.5KG、2700g（可选）

★功率：240W

★电源：220V，

★电动均匀施力。

2. Technical parameters:

★ Force measuring range: 0-100N, 0-200N, 0-500N (optional)

★ Measurement accuracy: 0.1

★ Heavy weight: 50N, 4.5KG, 2700g (optional)

★ Power: 240W

★ Power supply: 220V,

★ Electric force is evenly applied.

三、配置：

★主机1台，

★砝码1件，

★400号碳化硅砂纸2张，

★P220碳化硅粉1包，

★150*150*5mm及100*100*5mm浮法玻璃各1块。

3. Configuration:

★ 1 host,

★ 1 weight,

★ 2 sheets of 400 # silicon carbide sandpaper,

★ 1 pack of P220 silicon carbide powder,

★ One piece each of 150 * 150 * 5mm and 100 * 100 * 5mm float glass.
