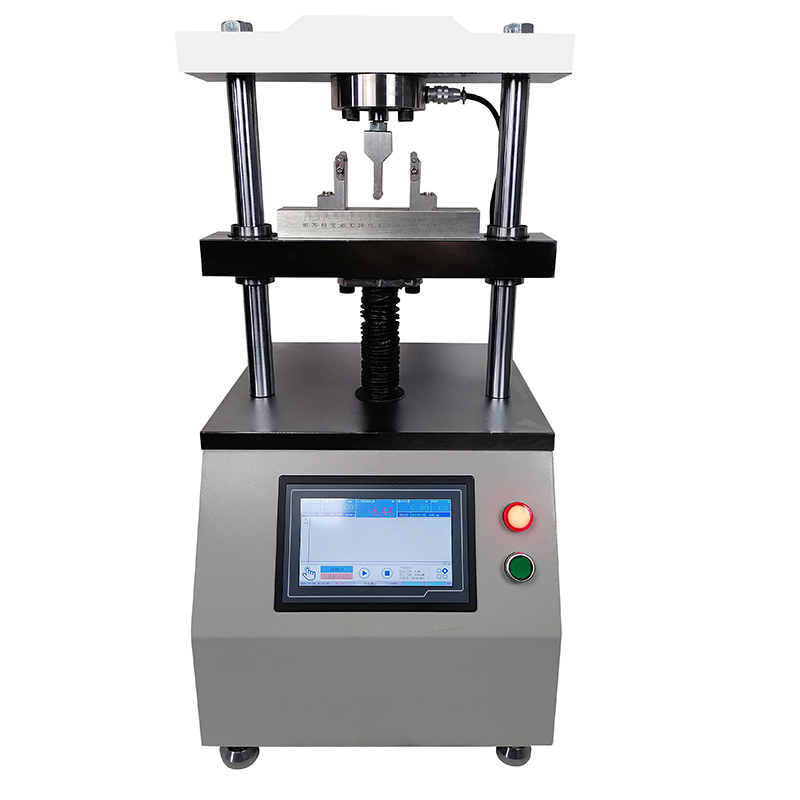

微型抗折抗压试验机

一、概述:

采用微电脑触屏控制，丝杠传动，带有曲线显示，带有打印机直接打印试验数据。广泛应用于水泥、石膏、砂浆、保温材料的抗压抗折等多项物理力学性能试验。也可做其他零部件的力学性能试验。

软件能够完成大力、大变形、强度、弹性模量、屈服点力、伸长率等参数的计算和实时显示，其中，定伸强度的水平值和定力水平值可以在试样参数界面，按照客户实际使用的要求输入到软件相关位置。可以计算的参数还包括抗压强度、上下压缩屈服强度、压缩弹性模量、弯曲强度、弯曲弹性模量、平均弯曲力、平均剪切力、剪切强度、剪切模量等力学物理性能相关参数。

I. Overview

It adopts microcomputer touch screen control, screw drive, with curve display, with printer to print test data directly. It is widely used in a number of physical and mechanical performance tests such as cement, gypsum, mortar, and thermal insulation materials. It can also test the mechanical properties of other parts.

The software can complete the calculation and real-time display of parameters such as force, large deformation, strength, elastic modulus, yield point force, and elongation. Among them, the level value of constant tensile strength and constant force level can be displayed in the sample parameter interface according to The actual requirements of the customer are entered into the relevant position of the software. The parameters that can be calculated also include compressive strength, upper and lower compression yield strength, compressive elastic modulus, bending strength, bending elastic modulus, average bending force, average shear force, shear strength, shear modulus and other mechanical and physical properties related parameter.

二、技术参数:

大试验力：10KN

2、示值准确度：1%

3、小分辨率：0.02%

4、试验速度：1mm/min－200mm/min

5、机械加荷电子显示

6、试验空间：150mm

7、功率：1.1千瓦电压：220V

8、外型尺寸：600*450*750mm

2. Technical parameters:

1. Large test force: 10KN

2. Accuracy of indication: 1%

3. Small resolution: 0.02%

4. Test speed: 1mm/min-200mm/min

5. Mechanical loading electronic display

6. Test space: 150mm

7. Power: 1.1 kW Voltage: 220V

8. Dimensions: 600*450*750mm
