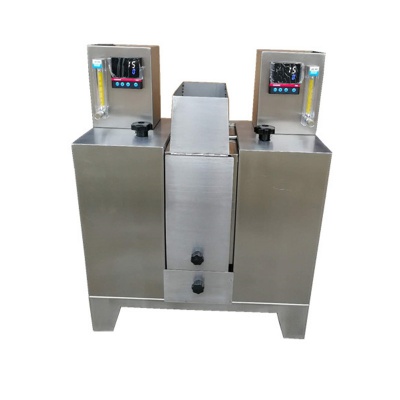

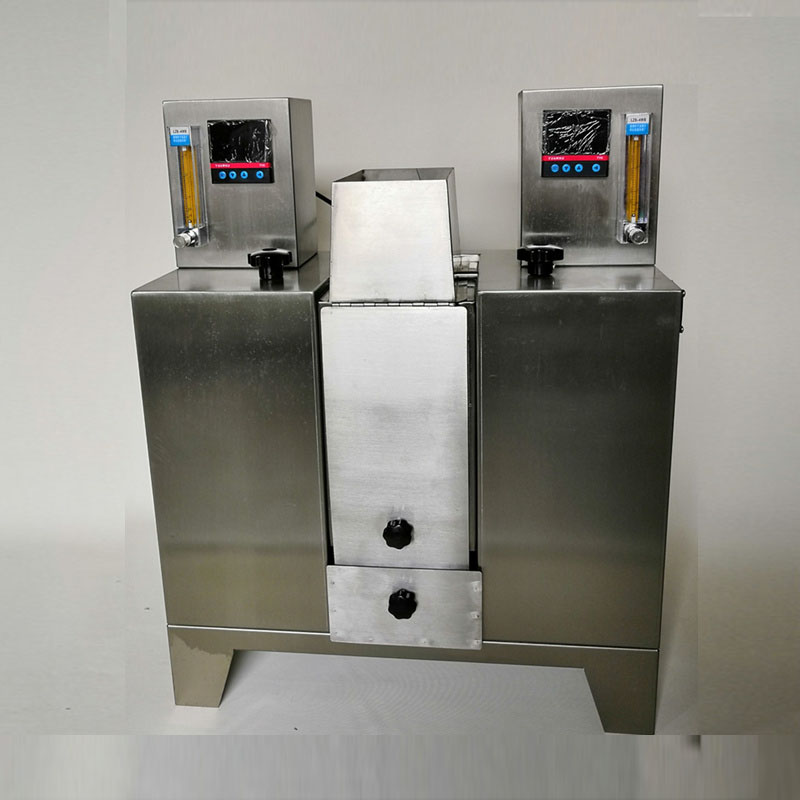

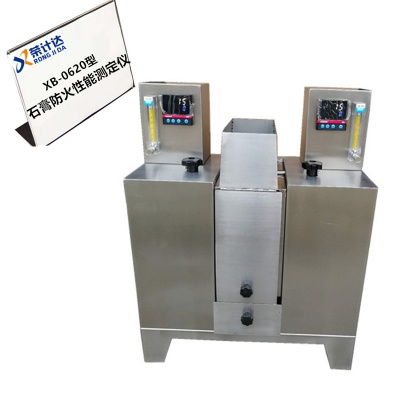

石膏防火性能测定仪,石膏遇火稳定性测定仪

他原是用于测定耐火石膏板遇火稳定性的专用测定仪器,主要用于测定耐火石膏板的遇火稳定性,也适用于其他建材、装饰、装潢材料防火性能的测定。

  • 型号: XB-0620

  • 产品参数
  • 型号: XB-0620

上海荣计达仪器科技有限公司**经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。**经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。公司产品凭借过硬的质量、完善的售后服务、合理的价格畅销各大院校、检测单位、建材企业、工程建设单位。在消费者当中享有较高的地位和良好的口碑,用户遍布国内近三十个省市、自治区,并远销国外,与用户建立了长期稳定的合作关系。公司实力雄厚,重信用、守合同。有健全的管理制度和完善健全的质量管理体系。并有反应迅速、服务周到的售后服务系统。我们将不懈努力、一如既往以优异的品质为客户服务。

Shanghai Rongjida Instrument Technology Co., Ltd. ** operates cement experiment equipment, concrete experiment equipment, highway geotechnical experiment equipment, dry mortar thermal insulation mortar experiment equipment, asphalt waterproof material experiment equipment, paint coating experiment equipment, nondestructive testing and other experimental equipment. ** Operating cement experiment equipment, concrete experiment equipment, highway geotechnical experiment equipment, dry mortar thermal insulation mortar experiment equipment, asphalt waterproof material experiment equipment, paint coating experiment equipment, non-destructive testing and other experimental equipment. Company products rely on excellent quality, perfect after-sales service, reasonable prices sell well in major universities, testing units, building materials enterprises, engineering construction units. It enjoys a high status and a good reputation among consumers, and has customers in nearly 30 provinces, cities, and autonomous regions in China, and has been exported to foreign countries. It has established long-term and stable cooperative relationships with users. The strength of the company, credit and contract compliance. Have a sound management system and a sound quality management system. And has a responsive and thoughtful after-sales service system. We will make unremitting efforts to serve our customers with excellent quality as always.


一、产品简介:

防火性能测定仪亦称新型板材遇火稳定性测定仪,他原是用于测定耐火石膏板遇火稳定性的专用测定仪器,主要用于测定耐火石膏板的遇火稳定性,也适用于其他建材、装饰、装潢材料防火性能的测定。

Product introduction:

Fire performance tester is also known as the new board fire stability tester. It was originally a special measuring instrument used to determine the fire stability of refractory gypsum boards. It is mainly used to measure the fire stability of fire gypsum boards. Determination of fire resistance of building materials, decoration and decoration materials.


二、技术参数:

♦燃烧温度:600~850℃

♦燃气压力:2.75±0.49kPa

♦使用气体:丙烷、煤气、液化气

♦流量调节范围:100~1000L/h

♦测温量程:0~1199℃

♦悬挂荷重:0.75~2.5kg

♦电源、功率:220V 50Hz 120W

♦外形尺寸:220X145X60mm

♦净重:60kg

Technical parameters:

♦ Combustion temperature: 600 ~ 850 ℃

♦ Gas pressure: 2.75 ± 0.49kPa

♦ Used gas: propane, coal gas, liquefied gas

♦ Flow adjustment range: 100 ~ 1000L / h

♦ Temperature measurement range: 0 ~ 1199 ℃

♦ Hanging load: 0.75 ~ 2.5kg

♦ Power supply, power: 220V 50Hz 120W

♦ Dimensions: 220X145X60mm

♦ Net weight: 60kg


三、原理及结构:

整个仪器由三部分组成:

a.以燃烧起源(包括减压装置)、玻璃转子流量计及流量控制阀、燃烧器等构成燃烧部分。

b.由热电偶与温度数字显示器构成测温部分。

c.由支架杆以及砝码构成加荷部分。

Third, the principle and structure:

The entire instrument consists of three parts:

a. Combustion origin (including decompression device), glass rotor flowmeter, flow control valve, burner and so on.

b. The thermocouple and temperature digital display constitute the temperature measurement part.

c. The loading part is composed of the support rod and the weight.


石膏防火性能测定仪,石膏遇火稳定性测定仪
他原是用于测定耐火石膏板遇火稳定性的专用测定仪器,主要用于测定耐火石膏板的遇火稳定性,也适用于其他建材、装饰、装潢材料防火性能的测定。
