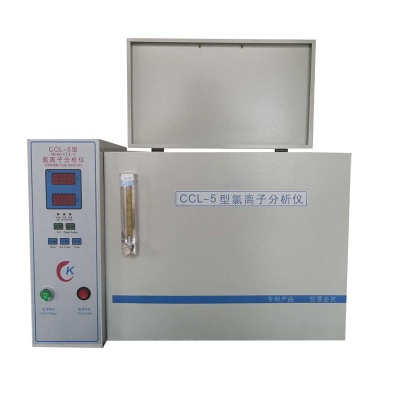

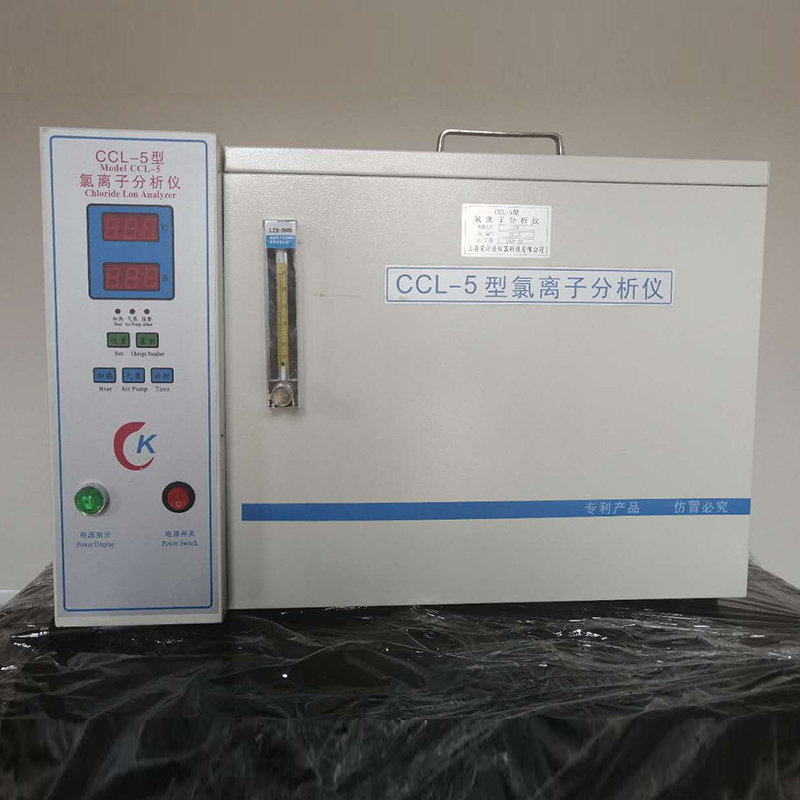

水泥氯离子测定仪

一、产品简介：

水泥氯离子测定仪是用于**水泥胶凝材料、外加剂等中氯离子全量测定的仪器，具有性能优异，操作简单，数据准确，产品质量稳定等优点。

Product introduction:

Cement chloride ionizer is an instrument used to measure the total amount of chloride ions in cement cement materials, admixtures, etc. It has the advantages of excellent performance, simple operation, accurate data, and stable product quality.

二、技术参数：

★性能指标控温精度：±0.2%；

★计时精度：±0.1%；

★温度设定：250-260℃

★环境要求试验室内应保持干燥清洁。

Technical parameters:

★ Performance index temperature control accuracy: ± 0.2%;

★ Timing accuracy: ± 0.1%;

★ Temperature setting: 250-260 ℃

★ Environmental requirements The test chamber should be kept dry and clean.

三、主要特点：

★分析速度快，单个样品测定在10分钟完成。

★分析精度高，分析结果偏差小于标准要求的误差

★自动化水平高，仪表为数字显示，控温精度0.5%度

★保温性好，配件齐全。

★应用范围广、可用于水泥成品、半成品及原料的测定，也可用于水泥，砼无机外加剂的测定。

Third, the main features:

★ The analysis speed is fast, the determination of a single sample is completed in 10 minutes.

★ High analysis accuracy, the deviation of the analysis result is less than the error required by the standard

★ High level of automation, digital display of instrument, temperature control accuracy of 0.5% degree

★ Good insulation and complete accessories.

★ It has a wide range of applications, and can be used for the determination of cement finished products, semi-finished products and raw materials.

四、操作规程：

★打开电源开关，开机，按确定键开始运行。

★温度和时间设定好后，按加热启动键，此时开始升温，当温度达到设定值后，将石英蒸馏管置于炉内，迅速连接好硅胶管，然后打开气泵和计时开关，气泵开始工作，计时器**。

★计时完毕，仪器将自动报警，提示工作结束。结束后关闭电源开关。

Fourth, operating procedures:

★ Turn on the power switch, power on, and press the OK key to start running.

★ After the temperature and time are set, press the heating start key to start heating. When the temperature reaches the set value, place the quartz distillation tube in the furnace, quickly connect the silicone tube, and then turn on the air pump and timer switch Start working, timer **.

★ After the timing is over, the instrument will alarm automatically to indicate the end of work. Turn off the power switch when finished.

五、混凝土中氯离子的来源：

氯盐是廉价而易得的丁业原料，它在水泥生产中具有明显的经济价值。它可以作为熟料煅烧的矿化剂，能够降低烧成温度，有利于节能高产；它也是有效的水泥早强剂，不仅使水泥３ｄ强度提高５０％以上，而且可以降低混凝土中水的冰点温度，防止混凝土早期受冻。氯离子的来源主要是原料、燃料、混合材料和外加剂，但由于熟料煅烧过程中，氯离子大部分在高温下挥发而排出窑外，残留在熟料中的氯离子含培**少。如果水泥中的氯离子含量过高，其主要原冈是掺加了混合材料和外加剂（如：工业废渣、助磨剂等）。因此，在我国水泥新标准中增加了“水泥生产中允许加入≤０．５％的助磨剂和水泥中的氯离子含量必须≤Ｏ．０６％”的要求”，这主要是为了保证水泥不对混凝土质量产生过多负面影响。

V. Sources of chloride ion in concrete:

Chloride is a cheap and readily available raw material for Ding industry, and it has obvious economic value in cement production. It can be used as a mineralizer for calcining clinker, which can reduce the firing temperature and is conducive to energy saving and high yield. It is also an effective early strength agent for cement, which not only increases the 3d strength of cement by more than 50%, but also reduces the freezing temperature of water in concrete. To prevent early freezing of concrete. The sources of chloride ions are mainly raw materials, fuels, mixed materials and admixtures. However, most of the chloride ions are volatilized at high temperature and discharged out of the kiln during the clinker calcination process. . If the chloride ion content in cement is too high, the main source is mixed with admixtures and additives (such as industrial waste residue, grinding aids, etc.). Therefore, the requirement of "allowing the addition of grinding aids ≤0.5% in cement production and the chloride ion content in cement must be ≤0.05%" has been added to the new cement standard in China, which is mainly to ensure that cement is not correct. Excessive negative impact on concrete quality.
