石膏松散容重仪,石膏松散容重测定

石膏松散容重测定仪是专业石膏检测仪器,主要用于建筑石膏松散容重测定的仪器,产品符合GB9776标准要求。

  • 型号:RZ-100

  • 产品参数
  • 型号:RZ-100



石膏松散容重仪,石膏松散容重测定是专业石膏检测仪器,主要用于建筑石膏松散容重测定的仪器,产品符合GB9776标准要求。使用前务必仔细阅读说明书。并由专业实验人员操作,以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

Gypsum loose bulk density measuring instrument is a professional gypsum testing instrument, mainly used for measuring the bulk density of building gypsum. The product meets the requirements of GB9776 standard. Be sure to read the instructions carefully before use. It is operated by professional experimenters to avoid injury caused by improper operation. For more information, please contact our customer service staff.

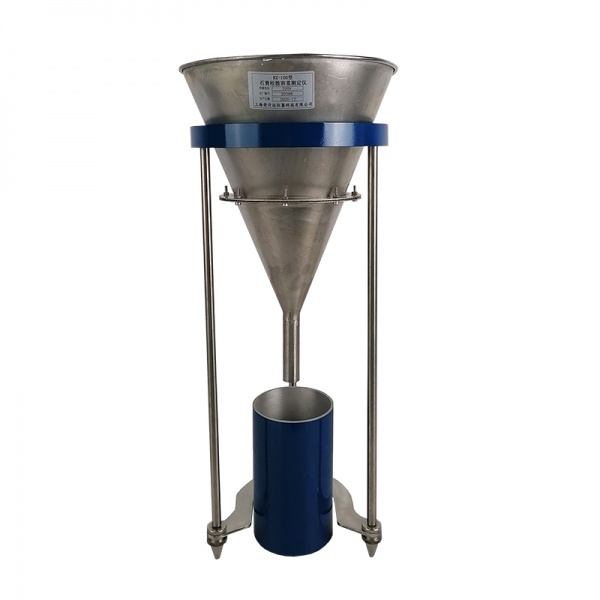

石膏松散容重仪,石膏松散容重测定1.锥形筛2.三脚支架3.测量容器(上部是延伸筒、下部是容重桶,其容量是1升)三部分组成

主要参数:

1.锥形筛孔径:2mm,

2.净重:30kg。

3.外形尺寸:300X260X120mm

Gypsum loose bulk density tester by 1. Conical sieve. 2. Tripod bracket. 3. The measuring container (the upper part is an extension cylinder, the lower part is a bulk density barrel, and its capacity is 1 liter) is composed of three parts.
The main parameters:
1. Conical sieve aperture: 2mm,
2. Net weight: 30kg.
3. Dimensions: 300X260X120mm



石膏松散容重仪,石膏松散容重测定使用方法:

1)从保存在密封容器内的试验室石膏样品中,取出1000克试样,并充分搅拌均匀,使其通过孔径为2毫米的锥形筛,然后按下述步骤用同一仪器测定两次。

称量不带延伸套筒的容重桶,精确至0.1克,在容重桶上装上套筒,并将其放在仪器的锥形漏斗下,将试样以100克为一份倒入漏斗中,用毛刷搅动试样,使其通过筛网落入容重桶中。当装有延伸套简的容重桶填满时,在避免振动的情况下移去套筒,用直尺刮平表面,除去多余物料,直至表面与容重桶上缘位于同一水平面上为止。称量容重桶和试样重量精确至0.1克。

2)结果的表示方法:

按下式计算松散容重,克/升

r=m1-m0

其中:m1是容重桶和试样的重量(克)

m0是容重桶本身的重量(克)

如果两次测定结果之差,小于两次试验结果较小值的5 % ,则以平均值作为试样的松散容重;否则,应再次测定,至两次测定值之差小于5 %。再取其平均值。

Gypsum loose bulk density tester use:
1) From the test room gypsum sample stored in the sealed container, 1000 g of the sample was taken out and thoroughly stirred, passed through a conical sieve having a pore diameter of 2 mm, and then measured twice by the same instrument as described below.
Weigh the volumetric drum without extension sleeve to the nearest 0.1 gram, install the sleeve on the bulk container, place it under the cone of the instrument, and pour the sample into the funnel in 100 gram portions. The sample was agitated with a brush and dropped through a screen into a bulk container. When the weight-bearing bucket with the extended sleeve is filled, the sleeve is removed without vibration, and the surface is scraped with a ruler to remove excess material until the surface is on the same level as the upper edge of the bulk density drum. Weigh the bulk container and sample to the nearest 0.1 gram.
2) Representation of the results:
Calculate the loose bulk density by the following formula, gram / liter
r=m1-m0
Where: m1 is the weight of the bulk density drum and the sample (g)
M0 is the weight of the bulk container itself (g)
If the difference between the two determination results is less than 5% of the smaller value of the two test results, the average value is taken as the loose bulk density of the sample; otherwise, it should be measured again, and the difference between the two measured values is less than 5%. Take the average again.



石膏松散容重仪,石膏松散容重测定使用安放:

本仪器应安放在无震源无腐蚀介质的环境中,并置于适当高度的平台上。必要时可调整三脚支 架下部的三个锥形螺母使其至水平位置。

维护保养:

1) 用后清理、抹干净;

2) 筛网上放干燥剂。

RZ-100 Gypsum Loose Bulk Density Tester is used for placement:
The instrument should be placed in an environment free of non-corrosive media and placed on a platform of appropriate height. If necessary, adjust the three conical nuts on the lower part of the tripod bracket to the horizontal position.
maintenance:
1) Clean and wipe clean after use;
2) Place the desiccant on the screen.
