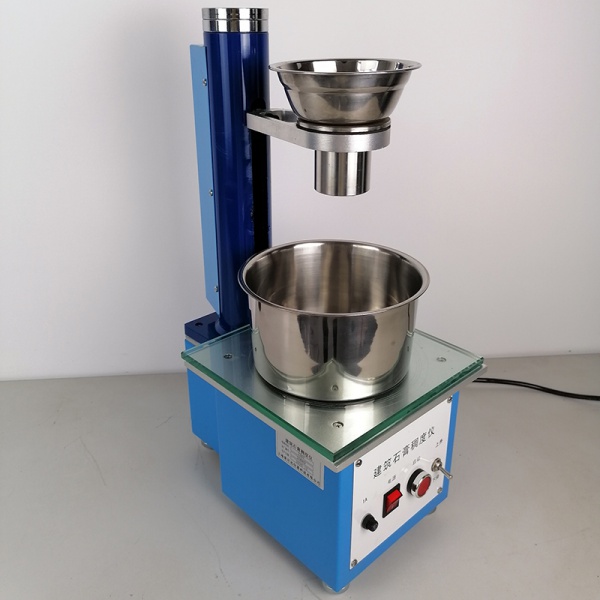

石膏稠度仪

建筑石膏稠度仪是专业石膏检测仪器,用于测定建筑石膏的标准稠度设备,因此它适用于制作建筑石膏制品的生产单位和有关科研部门。产品符合GB9776标准要求。

  • 型号:CHD-50

  • 产品参数
  • 型号:CHD-50




一,石膏稠度仪产品简介:
建筑石膏稠度仪是专业石膏检测仪器,用于测定建筑石膏的标准稠度设备,因此它适用于制作建筑石膏制品的生产单位和有关科研部门。产品符合GB9776标准要求。
irst, the product introduction:
The building plaster consistency meter is a professional gypsum testing instrument used to determine the standard consistency equipment for building gypsum. Therefore, it is suitable for the production unit of building gypsum products and related scientific research departments. The product meets the requirements of GB9776 standard.

二,石膏稠度仪技术参数:
♦稠度筒提升速度:150mm/s。
♦包装尺寸:48×37×67cm。
♦毛重/净重:30/22kg。
♦电压功率:380V/60w。
Second, technical parameters:
♦ Thickness tube lifting speed: 150mm/s.
♦ Packing size: 48 × 37 × 67cm.
♦ Gross weight / net weight: 30/22kg.
♦ Voltage power: 380V/60w.

二,石膏稠度仪使用方法:
♦操作前先将电源接通(红色信号灯两),并把上升下降开关,调整在上升位置,接着用洁净的湿毛巾将稠度筒内部及玻璃板擦净并保持湿润,把玻璃板归整的放在工作台面上。
♦通过起落架的圆孔将稠度筒置于玻璃板的正中(即放在同心圆的正中)。
♦待石膏稠度试验程序告一段落后按启动按钮于是稠度筒在起落架上以150mm/s的速度垂直上升至上限位停止机械运动为止,取出稠度筒。
♦复位时,把上升下降开关调到下降位置,按启动按钮,起落架复位。如复位有误差可借助丝杆的上轴端的矩形槽使丝杆转动从而使起落架复位。
♦注意:当用户电源相位与调试时相反时,则回出现丝杆反转,从而出现相反方向的运动。此时,用户可将插座任两相互换,则能正常。
Second, the method of use:
♦ Turn on the power (red light two) before operation, and adjust the up and down switch to the up position, then wipe the inside of the consistency tube and the glass plate with a clean wet towel and keep it moist. The glass plate is placed on the work surface.
♦ Place the consistency cylinder in the center of the glass plate (ie, in the center of the concentric circle) through the round hole of the landing gear.
♦ Wait for the gypsum consistency test procedure. Press the start button and then the consistency tube will rise vertically to the upper limit at the speed of 150mm/s to stop the mechanical movement, and take out the consistency tube.
♦ When resetting, turn the up and down switch to the down position and press the start button to reset the landing gear. If there is an error in the reset, the screw can be rotated by the rectangular groove of the upper shaft end of the screw to reset the landing gear.
♦ Note: When the user's power phase is opposite to that of the debugger, the screw reversal occurs and the opposite direction of motion occurs. At this point, the user can change any two sockets, and it can be normal.

三、石膏稠度仪主要结构和工作原理
Third, the main structure and working principle

①结构:(附示意图一)
1 structure: (with schematic 1)




②稠度测量部分:底座:其左半部分是电机座,右半内部是电器箱,上部是工作台(其上面覆盖着刻有一组从60到200的同心圆的不锈钢板)玻璃板和稠度筒组成。
③立柱:有螺旋副(螺母,丝杆),水平仪,起落架等组成。
④工作原理:由电机通过连轴器把动力传给丝杆,使丝杆转动从而带动螺母和起落架以150mm/s的速度提起稠度筒,当螺母上升至限位时撞击限位开关,从而切断电源。
2 Consistency measurement part: base: the left part is the motor seat, the right part is the electrical box, the upper part is the work table (the top is covered with a set of stainless steel plates with a concentric circle from 60 to 200) glass plate and consistency tube composition.
3 column: There are spiral pair (nut, screw), level, landing gear and so on.
4 working principle: the motor transmits the power to the screw through the coupling, so that the screw rotates to drive the nut and the landing gear to lift the consistency cylinder at a speed of 150mm/s, and when the nut rises to the limit, it hits the limit switch, thereby cut the power.

四,石膏稠度仪安放:
利用底座下四个调平螺栓,用麻绳起吊安放。
本仪器应安放在无震源及周围无腐蚀介质的环境中。
本仪器应安放在适当高度的平台上,并在安放时注意水泡对中。
维护保养:
用后清理,抹干净。用罩子罩好。
Fourth, placement:
Use the four leveling bolts under the base and lift them with hemp rope.
The instrument should be placed in an environment free of sources and surrounding non-corrosive media.
The instrument should be placed on a platform of appropriate height and the blisters should be centered when placed.
maintenance:
Clean it after use and wipe it clean. Cover it with a cover.
