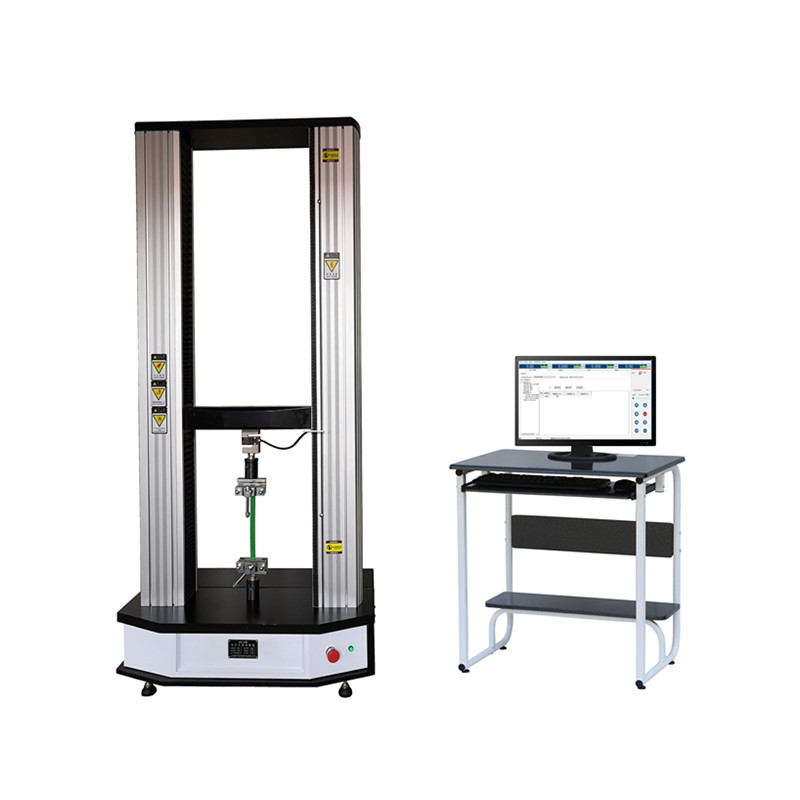

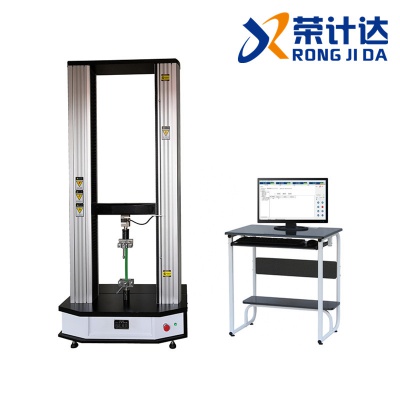

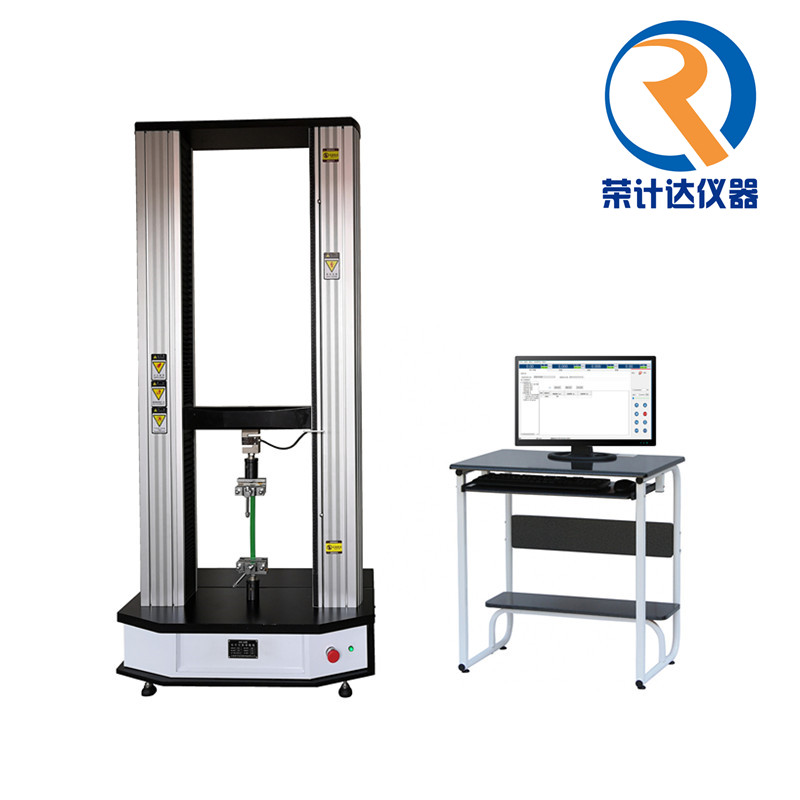

压缩试验机(保温材料)

保温材料压缩试验机是专业检测仪器,用于建筑材料、防水材料、保温材料、水泥砂浆、纱布、纤维材料、复合材料的拉伸、压缩、弯折、剪切等试验

  • 型号:WDW-10

  • 产品参数
  • 型号:WDW-10




压缩试验机是专业检测仪器,用于建筑材料、防水材料、保温材料、水泥砂浆、纱布、纤维材料、复合材料的拉伸、压缩、弯折、剪切等试验,使用前务必仔细阅读说明书。

Insulation material compression testing machine is a professional testing instrument used for building materials, waterproof materials, thermal insulation materials, cement mortar, gauze, fiber materials, composite materials for tensile, compression, bending, shearing, etc., be sure to read carefully before use. Instructions.



压缩试验机技术参数:
★大试验力:10KN(可定制)
★准确度等级: 0.5级
★结构形式:门式框架结构;
★试验力示值允许误差极限:示值的±0.5%以内
★负荷测量范围:满量程的0.2%~AFS
★力分辨率:A大试验力的1/500000FS
★位移示值极限误差:示值的±0.5%以内
★位移A小分辨率:0.04umm
★横梁速度调节范围:0.001~1000mm/min
★横梁速度相对误差:设定值的±0.5%以内
★有效试验宽度:450mm
★有效拉伸空间距离:1000mm
★主机外形尺寸:750×440×1950mm
★主机重量:520kg
★供电电源:220V,50Hz,400W-1KW
★软件及用户界面:WINDOWS操作环境下的软件和交互式人机对话操作界面
★试验过程及测量、显示、控制等均由数显系统自动完成
★试样破坏后,移动横梁自动停止移动(或自动返回初始位置)
★具有程控和机械两级限位保护
★当负荷超过额定值3~10%时,自动停机保护;

Insulation material compression testing machine technical parameters:
★ Large test force: 10KN (can be customized)
★Accuracy level: 0.5
★Structural form: gantry frame structure;
★Test force indication allowable error limit: within ±0.5% of the indicated value
★Load measurement range: 0.2% of full scale ~ AFS
★ Force resolution: 1/500000FS of A large test force
★ Displacement indication limit error: within ±0.5% of the indicated value
★ Displacement A small resolution: 0.04umm
★ Beam speed adjustment range: 0.001 ~ 1000mm / min
★ Relative speed of beam speed: within ±0.5% of the set value
★ Effective test width: 450mm
★ Effective stretching space distance: 1000mm
★ host size: 750 × 440 × 1950mm
★Host weight: 520kg
★Power supply: 220V, 50Hz, 400W-1KW
★Software and user interface: software and interactive man-machine dialogue interface in WINDOWS operating environment
★The test process and measurement, display, control, etc. are all automatically completed by the digital display system.
★ After the specimen is destroyed, the moving beam automatically stops moving (or automatically returns to the initial position)
★ With program control and mechanical two-level limit protection
★ When the load exceeds the rated value of 3~10%, the automatic shutdown protection;



压缩试验机可根据GB、ISO、JIS、ASTM、DIN、JG、JT、YB、QB、YD、YY、QC、SY、SL、BB、HG等国际标准和行业标准进行试验和提供数据,根据产品选配不同附具后可进行拉伸、压缩、弯曲、剥离、撕裂、刺破、顶破、剪切、低周疲劳等试验,具有应力、应变、位移三种闭环控制方式,联接电脑打印机实现全电脑控制并打印标准试验报告;以windows操作系统使试验数据曲线动态显示,试验数据可以任意删加,对曲线操作更加简便.轻松.随时随地都可以进行曲线遍历.叠加.分离.缩放.打印等全电子显示监控。
Insulation material compression testing machine can test and provide data according to international standards and industry standards such as GB, ISO, JIS, ASTM, DIN, JG, JT, YB, QB, YD, YY, QC, SY, SL, BB, HG, etc. According to the different options of the product, it can be used for tensile, compression, bending, peeling, tearing, puncture, bursting, shearing, low-cycle fatigue, etc. It has three closed-loop control modes of stress, strain and displacement. The computer printer realizes full computer control and prints standard test report; the Windows operating system makes the test data curve dynamically display, the test data can be arbitrarily deleted, and the curve operation is more convenient. Easy. Curve traversal can be performed anytime and anywhere. Overlay. Separation. Full electronic display monitoring such as zooming and printing.
