手持测厚仪

防水卷材测厚仪是专业检测仪器,根据GBl8173-2000《高分子防水卷材》及GBl8242-2000《弹性体改性沥青防水卷材》GB18243-2000《塑性体改性沥青防水卷材》标准中的厚度要求精心设计制造的

  • 型号: 手持测厚仪

  • 产品参数
  • 型号: 手持测厚仪



上海荣计达仪器科技有限公司专业经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。专业经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。公司产品凭借过硬的质量、完善的售后服务、合理的价格畅销各大院校、检测单位、建材企业、工程建设单位。在消费者当中享有较高的地位和良好的口碑,用户遍布国内近三十个省市、自治区,并远销国外,与用户建立了长期稳定的合作关系。公司实力雄厚,重信用、守合同。有健全的管理制度和完善健全的质量管理体系。并有反应迅速、服务周到的售后服务系统。我们将不懈努力、一如既往以优异的品质为客户服务。

Shanghai Rongjida Instrument Technology Co., Ltd. specializes in operating laboratory equipment such as cement experimental instruments, concrete experimental instruments, highway geotechnical experimental instruments, dry mortar mortar thermal insulation mortar experimental instruments, asphalt waterproof materials experimental instruments, paint coating experimental instruments, non-destructive testing. Specializing in the operation of cement experimental instruments, concrete experimental instruments, highway geotechnical experimental instruments, dry mortar mortar thermal insulation mortar experimental equipment, asphalt waterproof material experimental equipment, paint coating experimental equipment, non-destructive testing and other experimental instruments. The company's products are sold well in universities, testing units, building materials companies and engineering construction units with excellent quality, perfect after-sales service and reasonable prices. It enjoys a high status and good reputation among consumers. The users are located in nearly 30 provinces, municipalities and autonomous regions in China, and are exported to foreign countries. They have established long-term and stable cooperative relations with users. The company is strong in strength, re-credit and abide by the contract. Have a sound management system and a sound quality management system. And there is a quick response and considerate after-sales service system. We will make unremitting efforts and continue to serve our customers with excellent quality.



手持测厚仪是专业检测仪器,根据GBl8173-2000《高分子防水卷材》及GBl8242-2000《弹性体改性沥青防水卷材》GB18243-2000《塑性体改性沥青防水卷材》标准中的厚度要求精心设计制造的,使用前务必仔细阅读说明书。并由专业实验人员操作,以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

Waterproof coil thickness gauge is a professional testing instrument, according to GBl8173-2000 "polymer waterproofing membrane" and GBl8242-2000 "elastomer modified asphalt waterproofing membrane" GB18243-2000 "plastic modified asphalt waterproofing membrane" standard The thickness of the material needs to be carefully designed and manufactured. Please read the instructions carefully before use. It is operated by professional experimenters to avoid injury caused by improper operation. For more information, please contact our customer service staff.



手持测厚仪主要技术参数:

1、测量范围:0-10mm ;

2、上测直径:Φ10±0.05m ;

3、精 度 值:0.01mm ;

4、施加压力:0.02MPa

Main technical parameters of waterproof membrane thickness gauge:
1, measuring range: 0-10mm;
2. The measured diameter is Φ10±0.05m;
3. Precision value: 0.01mm;
4. Pressure applied: 0.02MPa



手持测厚仪使用方法:

1、测试前先对准表的零位,并拨动操纵杆试几次,回零后再进行测试,操作时要轻提轻放,以免损坏平台,测足及仪表。

2、用手指按下操纵杆,使测足上台,将被测片材质放在平台与测足之间,轻放操纵杆此时表的读数即为被测物的厚度。每个待测尺寸至少要取5个测量值,计算5点的平均值作为该卷材的厚度并报告A小单位值。

Waterproof membrane thickness gauge use method:
1. Before the test, first align the zero position of the watch, and dial the joystick for several times. After returning to zero, test it again. When lifting the operation, please gently lift it to avoid damage to the platform, foot measurement and instrument.
2. Press the joystick with your finger to make the foot on the platform. Place the material of the test piece between the platform and the measuring foot. When the joystick is lightly placed, the reading of the watch is the thickness of the measured object. At least 5 measured values are to be taken for each dimension to be tested, and the average of 5 points is calculated as the thickness of the coil and A small unit value is reported.



手持测厚仪注意事项:

1、本仪器A卧式测量。

2、使用完毕后,用仪器罩罩好,以防尘土,防止受潮。

Waterproof membrane thickness gauge notes:
1, the instrument A horizontal measurement.
2. After use, cover the instrument with a dust cover to prevent moisture.

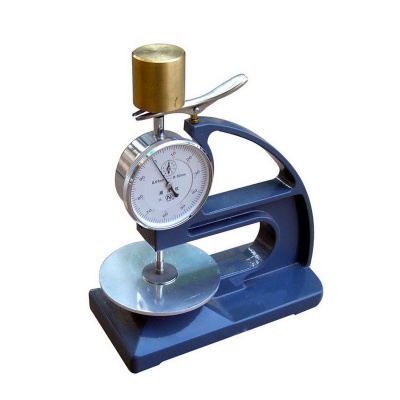

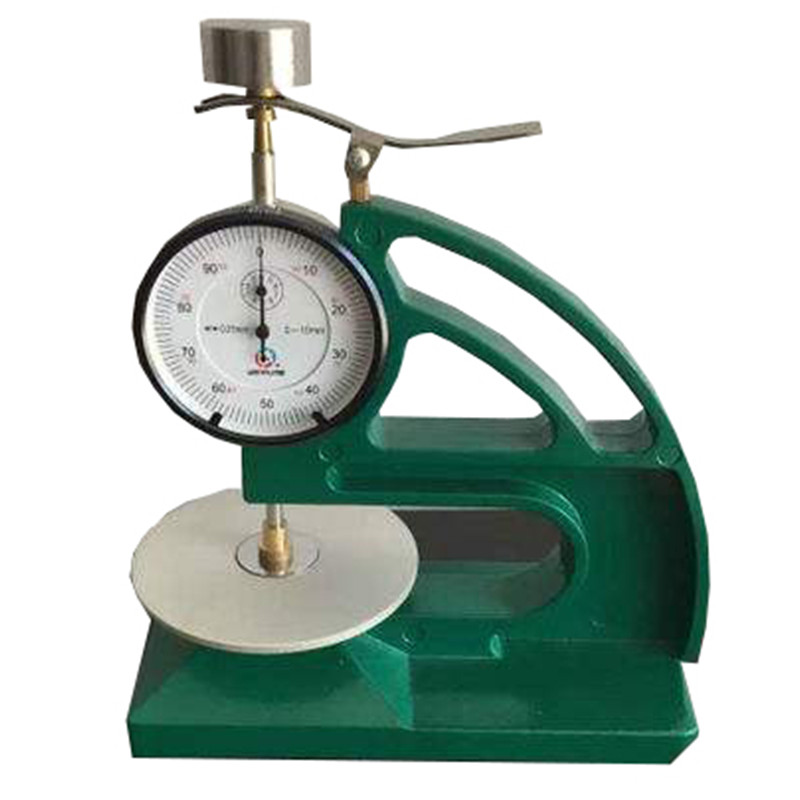

手持测厚仪
