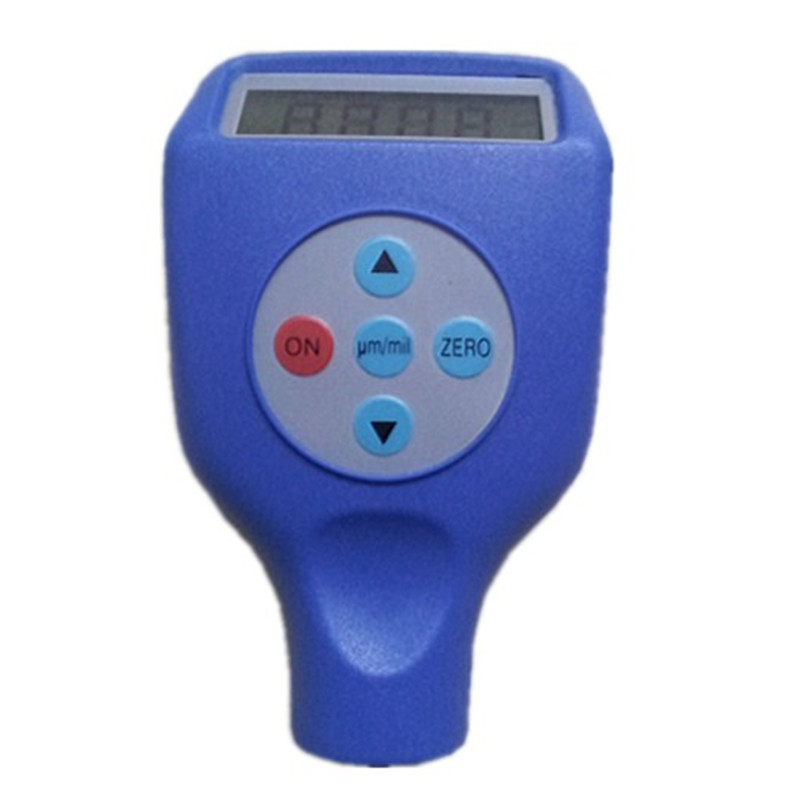

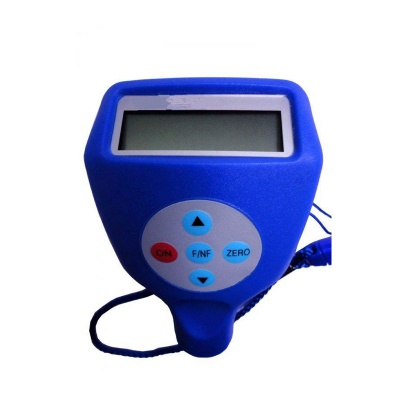

漆膜两用测厚仪,手持涂层测厚仪

涂层两用测厚仪是磁性、涡流一体的便携式覆层测厚仪,它能快速、无损伤、精密地进行涂、镀层厚度的测量。既可用于实验室,也可用于工程现场。本仪器能广泛地应用在制造业、金属加工业、化工业、商检等检测领域。

  • 型号:RJD8202

  • 产品参数
  • 型号:RJD8202



漆膜两用测厚仪,手持涂层测厚仪是磁性、涡流一体的便携式覆层测厚仪,它能快速、无损伤、精密地进行涂、镀层厚度的测量。既可用于实验室,也可用于工程现场。本仪器能广泛地应用在制造业、金属加工业、化工业、商检等检测领域。

The coating dual-purpose thickness gauge is a magnetic and eddy-flow portable coating thickness gauge, which can measure the thickness of coating and coating quickly, without damage and precision. It can be used in both laboratories and engineering sites. The instrument can be widely used in the fields of manufacturing, metal processing, chemical industry, commodity inspection and other testing.



漆膜两用测厚仪,手持涂层测厚仪是具有广泛使用范围的磁性和非磁性及两用仪器。其技术参数完全符合国家标准。可测量非磁性底材上的非导电性涂层和磁性底材上的非磁性涂层的厚度。

he coating dual-purpose thickness gauge is a magnetic and non-magnetic and dual-purpose instrument with a wide range of applications. Its technical parameters are in full compliance with national standards. The thickness of the non-conductive coating on the non-magnetic substrate and the non-magnetic coating on the magnetic substrate can be measured.



漆膜两用测厚仪,手持涂层测厚仪技术参数

测量范围:0~1250um (标准量程)

分辨率:0.1/1

小曲率半径: 凸 5mm/ 凹 5mm

小测量面积:10x10mm

薄基底:0.4mm

使用环境:温度:0-40℃ 湿度:10-85%RH

准确度:±(1.5+3%h)或±2um

公制/英制:可转换

电源:2节5号电池

Coating dual-purpose thickness gauge technical parameters:
★Measurement range: 0~1250um (standard range)
★ Resolution: 0.1/1
★ Small radius of curvature: convex 5mm / concave 5mm
★ Small measuring area: 10x10mm
★ Thin base: 0.4mm
★ Use environment: Temperature: 0-40 °C Humidity: 10-85% RH
★Accuracy: ±(1.5+3%h) or ±2um
★ metric / imperial: convertible
★ Power: 2 5th battery



漆膜两用测厚仪,手持涂层测厚仪特点:

双功能技术的测厚仪,完成磁感应和电涡流测量自动转换,应用双功能测量技术,能够自动识别磁性或非磁性底材,然后采用相应的测试方法,适用于各种测量环境。

Fe质探针可检测所有非磁性涂层厚度,例如涂在钢、铁上的漆、粉末涂层、塑料、瓷、铬、铜、锌等。

NFe质探针检测所有绝缘涂层厚度,例如漆、塑料、瓷等。这些涂层须涂在诸如铝、铜、黄铜或不锈钢等非磁性金属基体上。

Coating dual-purpose thickness gauge features:
★Double-function technology thickness gauge, which automatically converts magnetic induction and eddy current measurement, applies dual-function measurement technology, can automatically identify magnetic or non-magnetic substrate, and then adopts corresponding test methods, suitable for various measurement environments.
★Fe probe can detect the thickness of all non-magnetic coatings, such as paint coated on steel, iron, powder coating, plastic, porcelain, chrome, copper, zinc and so on.
★NFe probe detects the thickness of all insulating coatings, such as paint, plastic, porcelain, etc. These coatings must be applied to a non-magnetic metal substrate such as aluminum, copper, brass or stainless steel.



漆膜两用测厚仪,手持涂层测厚仪功能:采用了磁性和涡流两种测厚方法,即可测量磁性金属基体上非磁性覆盖层的厚度又可测量非磁性金属基体上非导电覆盖层的厚度;

可采用两种方法对仪器进行校准,并可用基本校准法对测头的系统误差进行修正;

操作过程有蜂鸣声提示;

电池电压指示:低电压提示

自动关机

测量方法:F 磁感应  NF  涡流

Coating dual-purpose thickness gauge function: magnetic and eddy current thickness measurement methods can be used to measure the thickness of the non-magnetic coating on the magnetic metal substrate and measure the thickness of the non-conductive coating on the non-magnetic metal substrate;
The instrument can be calibrated in two ways and the system error of the probe can be corrected using the basic calibration method;
There is a beeping prompt during the operation;
Battery voltage indication: low voltage prompt
Automatic shut-down
Measurement method: F magnetic induction NF eddy current

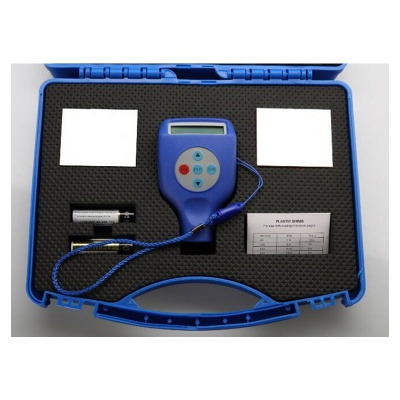

漆膜两用测厚仪,手持涂层测厚仪附件:

标准片4片: 50um 、100um、 250um 、500um(选配:12um、25um)

基体2块(GT810  2块基体)

电池2块(空运除外)

说明书1份

保修卡1张

机身尺寸:102mm×66mm×24mm

重量:99g(含电池)

Coating dual-purpose thickness gauge attachment:
4 standard tablets: 50um, 100um, 250um, 500um (optional: 12um, 25um)
Base 2 blocks (GT810 2 blocks)
2 batteries (except air transport)
1 copy of the instruction manual
1 warranty card
Body size: 102mm × 66mm × 24mm
Weight: 99g (with battery)
