沥青软化点试验仪

沥青软化点试验仪,沥青实验仪器

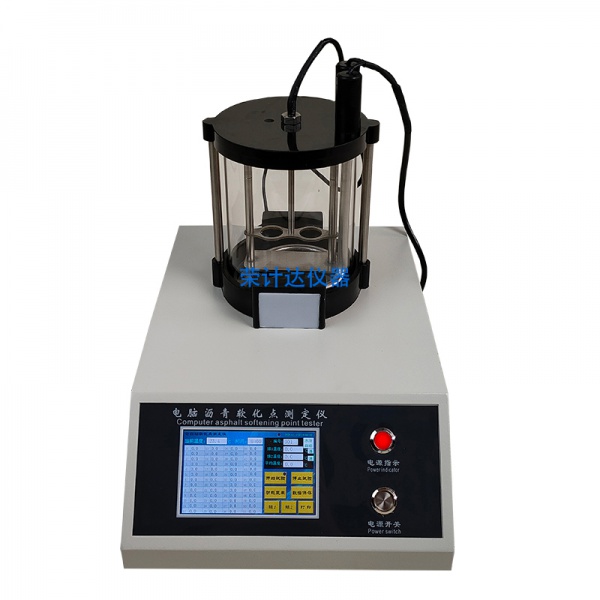

自动沥青软化点试验仪是专业检测仪器,适用于道路石油沥青、煤沥青、液化石油沥青和乳化蒸发后残留物等软化点测量。

The automatic asphalt softening point tester is a professional testing instrument suitable for softening point measurement of road petroleum asphalt, coal asphalt, liquefied petroleum asphalt and residue after emulsification evaporation.



自动沥青软化点试验仪特点:

★温度由仪器自控,无人为误差。

★外置式温度探头,对温度反映灵敏。

★速度采用PID加模糊逻辑算法控制,线性升温。

★新型外观,操作更加方便。

★强磁力搅拌装置,试验温度更均匀。

★自动、手动两种记录试验结果,自动计算平均值。

★配有微型打印机实时打印试验结果。

★有232接口可以与微机联网。

★液晶显示屏,可以实时显示温度与时间。

★可以测高温,介质水或甘油。

Automatic asphalt softening point tester features:
★The temperature is controlled by the instrument, and no one is wrong.
★ External temperature probe, sensitive to temperature.
★ Speed is controlled by PID plus fuzzy logic algorithm, linear temperature rise.
★ New appearance, more convenient operation.
★ Strong magnetic stirring device, the test temperature is more uniform.
★Automatically and manually record the test results and automatically calculate the average value.
★ With a micro printer to print test results in real time.
★ There are 232 interfaces to network with the computer.
★ LCD display, which can display temperature and time in real time.
★ Can measure high temperature, medium water or glycerin.



自动沥青软化点试验仪技术指标:

★测温范围:-5-270℃

★试验范围:5-180℃

★升温速率:(5±0.5)℃/min

★升温方式:升温速度采用PID加模糊逻辑算法控制,磁力搅拌

★检测方式:手动检测或光电自动检测。

★钢球质量:3.5g±0.05g

★钢球直径:9.53mm。

★钢球下沉:25.4mm。

★环:JTJ052-2000规程标准。

★计时范围:0-99分99秒

★测温精度:0.1℃

★执行标准:GB/T4505、ASTMD36、T0606-2000。

★外形尺寸:300x200x300mm

★重量:12KG

★电源电压:220V

★功率:1.1KW

★环境温度:5~40℃

★环境湿度:≦85﹪

Automatic asphalt softening point tester technical indicators:
★ Temperature range: -5-270 ° C
★ Test range: 5-180 ° C
★ Heating rate: (5 ± 0.5) ° C / min
★ Heating mode: heating rate is controlled by PID plus fuzzy logic algorithm, magnetic stirring
★ Detection method: manual detection or photoelectric automatic detection.
★ Steel ball quality: 3.5g ± 0.05g
★ Steel ball diameter: 9.53mm.
★ Steel ball sinking: 25.4mm.
★ Ring: JTJ052-2000 procedure standard.
★ Timing range: 0-99 minutes and 99 seconds
★ Temperature measurement accuracy: 0.1 °C
★Executive standards: GB/T4505, ASTMD36, T0606-2000.
★Dimensions: 300x200x300mm
★ Weight: 12KG
★Power supply voltage: 220V
★ Power: 1.1KW
★ Ambient temperature: 5 ~ 40 ° C
★Environmental humidity: ≦85%



自动沥青软化点试验仪功能:电脑控温、光电扫描,实时显示;仪器提供常规控制数据。特殊要求可由键盘选择。磁力搅拌,水体受热均匀。

Automatic asphalt softening point tester function: computer temperature control, photoelectric scanning, real-time display; the instrument provides routine control data. Special requirements can be selected by the keyboard. Magnetic stirring, the water body is heated evenly.



电脑沥青软化点简单性能说明:

SYD-2806D型软化点仪为数码管显示,带有磁力搅拌功能,钢珠落到底要人工观察,人工按键停止,当两个钢珠全部落下时,自动显示平均值。

SYD-2806E软化点仪在D型的基础上加有自动检测功能,当钢珠落下时,仪器可以自动检测,当两个钢珠全部落下可以自动结束试验。

SYD-2806F型软化点仪在E型的基础上改为液晶屏显示,更体现仪器高档化,对人眼无刺激,且具有E型全部特点,可以选配打印机,带有电脑接口。

SYD-2806G型软化点为高温型,可以做180度高温试验,手动检测液晶显示。

SYD-2806H型软化点在G型的基础上配有打印机和电脑接口。

Computer asphalt softening point simple performance description:
The SYD-2806D softening point meter is a digital tube display with magnetic stirring function. The steel ball should be manually observed when it falls, and the manual button is stopped. When both steel balls are completely dropped, the average value is automatically displayed.
The SYD-2806E softening point meter is equipped with an automatic detection function on the basis of the D type. When the steel ball is dropped, the instrument can automatically detect it. When all the steel balls fall, the test can be automatically ended.
The SYD-2806F softening point meter is changed to the LCD screen display on the basis of the E type. It also reflects the high-grade instrument, no stimulation to the human eye, and has all the features of the E-type. It can be equipped with a printer and a computer interface.
SYD-2806G type softening point is high temperature type, can do 180 degree high temperature test, manual detection of liquid crystal display.
The SYD-2806H softening point is equipped with a printer and computer interface on the basis of the G type.
