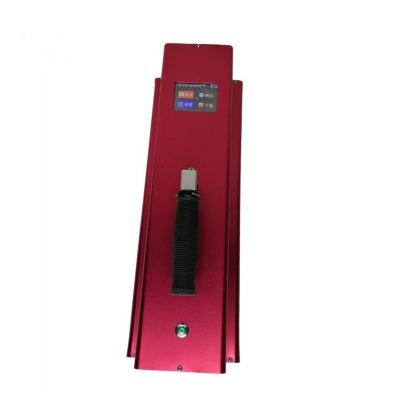

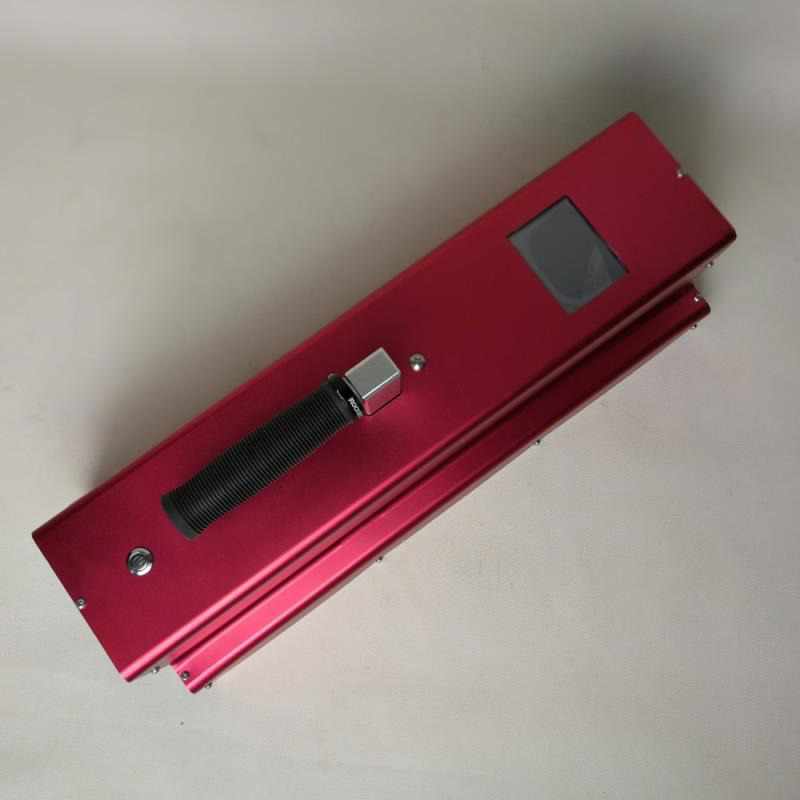

BX-II 标线逆反射系数测量仪,逆反射标线测量仪

***标准GB/T16311-2004《道路交通标线质量要求和检测方法》,
交通行业标准JT/T280-2004《路面标线涂料》都对反光标线夜间可见度的光学性能规定了技术指标,逆反射标线测量仪为控制施工质量提供了测量仪器。

  • 型号: BX-II

  • 产品参数
  • 型号: BX-II






一,产品简介:
逆反射标线测量仪是测量反光标线光学性能的专用仪器。
**标准GB/T16311-2004《道路交通标线质量要求和检测方法》,
交通行业标准JT/T280-2004《路面标线涂料》都对反光标线夜间可见度的光学性能规定了技术指标,逆反射标线测量仪为控制施工质量提供了测量仪器。
Product introduction:

Retro-reflective reticle measuring instrument is a special instrument for measuring the optical performance of anti-cursor lines.

** Standard GB / T16311-2004 "Quality Requirements and Testing Methods for Road Traffic Markings",

The transportation industry standard JT / T280-2004 "Pavement Marking Coatings" all stipulates technical indicators for the optical performance of night visibility of anti-cursor lines. Retro-reflective marking line measuring instruments provide measuring instruments for controlling construction quality.

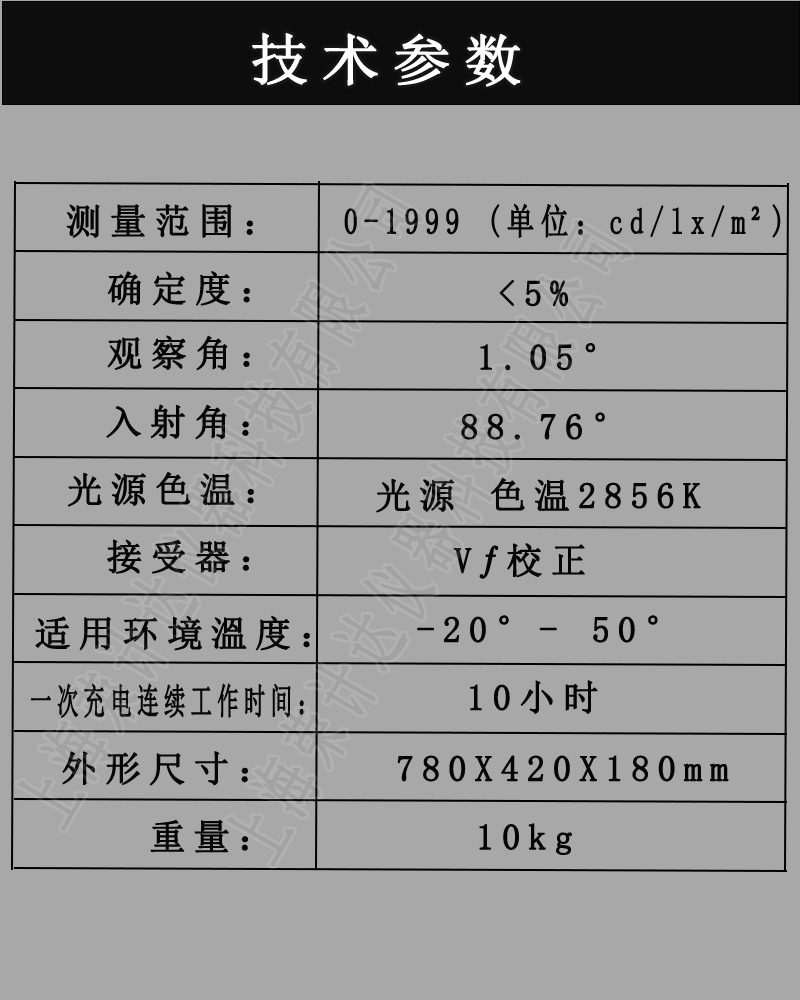

二,技术参数:
◆测量范围: 0~1999 (单位:cd/lx/m²)
◆确定度: <5%
◆观察角: 1.05°
◆入射角: 88.76°
◆光源色温: A光源 色温2856K
◆接受器: Vƒ校正
◆适用环境溫度: -20°~ 50°
◆一次充电连续工作时间: 10小时

外形尺寸:780X420X180mm

重量:10kg

Technical parameters:

◆ Measurement range: 0 ~ 1999 (unit: cd / lx / m²)

◆ Determinism: <5%

◆ Viewing angle: 1.05 °

◆ Angle of incidence: 88.76 °

◆ Light source color temperature: A light source color temperature 2856K

◆ Receiver: Vƒ correction

◆ Applicable ambient temperature: -20 ° ~ 50 °

◆ Continuous working time on one charge: 10 hours

◆ Dimensions: 780X420X180mm

◆ Weight: 10kg


三,详细描述
反光标线亮度,国际上用逆反射系数来表示,单位mcd/lx/m2。其物理意义是:在单位光照条件下,单位面积上产生的亮度值。将仪器置于被测标线的上面,该仪器以数字的形式显示出逆反射系数值,它反映了行车条件下司机对标线反光亮度的客观评价。该仪器由测量主机、电源、充电器、标准板组成。

Three, detailed description:

The brightness of the anti-cursor line, which is expressed in the international reflection coefficient, the unit is mcd / lx / m2. Its physical meaning is: the brightness value generated per unit area under unit lighting conditions. The instrument is placed on top of the marked line, and the instrument displays the value of retroreflective coefficient in digital form, which reflects the objective evaluation of the reflective brightness of the marked line by the driver under driving conditions. The instrument consists of a measurement host, a power supply, a charger, and a standard board.


四,产品特点:
◆能分白天、夜间、野外、室内,全天候测量;
◆仪器操作简单,以直观的数字显示出逆反射系数值;

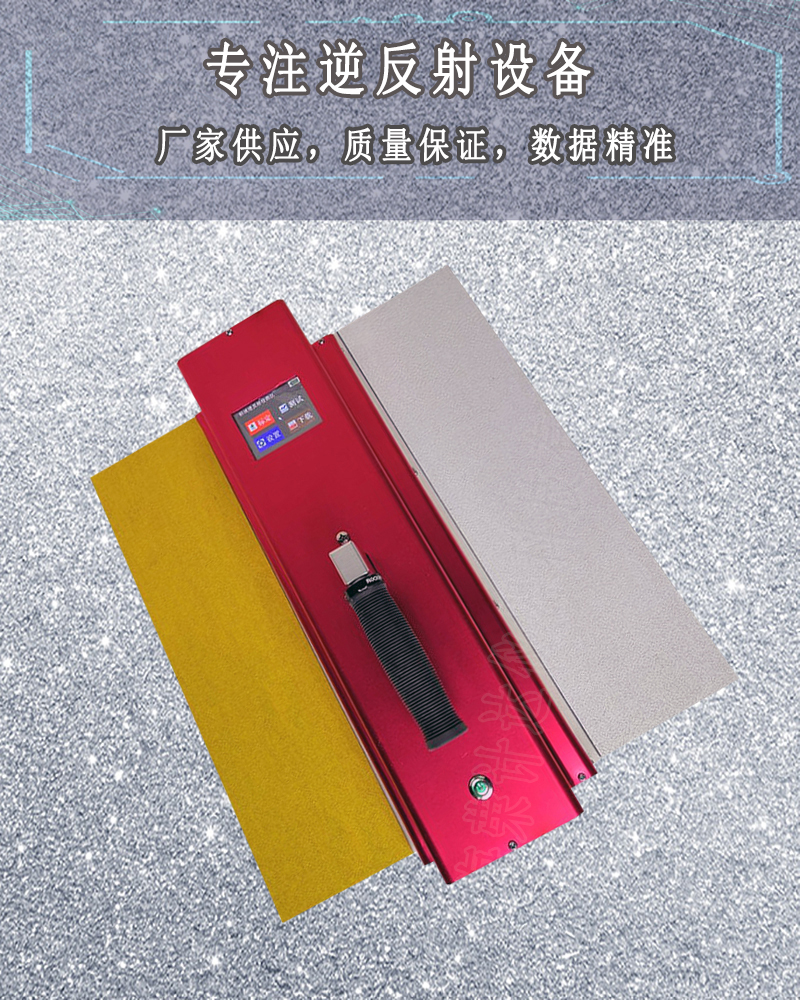

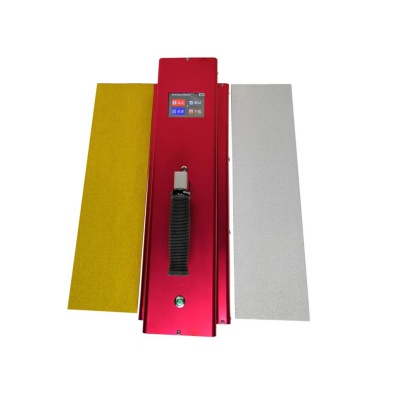

◆仪器配备一套标准板,采用数据传递方式进行标定,准确度高;
◆测量几何条件为观察角1.05°,入射角88.76°,符合**标准《道路交通标准质量要求和检测方法》;
◆仪器体积小,重量轻,携带方便

Fourth, product characteristics:

◆ Can be measured in day, night, outdoor, indoor, all weather;

◆ The instrument is easy to operate, and the retroreflective coefficient value is displayed with intuitive numbers;

◆ The instrument is equipped with a set of standard boards, and the data is transferred for calibration with high accuracy;

◆ The measurement geometric conditions are 1.05 ° observation angle and 88.76 ° incident angle, which complies with the ** standard "Quality Requirements and Detection Methods of Road Traffic Standards";

◆ The instrument is small in size, light in weight and easy to carry




BX-II 标线逆反射系数测量仪,逆反射标线测量仪
***标准GB/T16311-2004《道路交通标线质量要求和检测方法》,
交通行业标准JT/T280-2004《路面标线涂料》都对反光标线夜间可见度的光学性能规定了技术指标,逆反射标线测量仪为控制施工质量提供了测量仪器。
