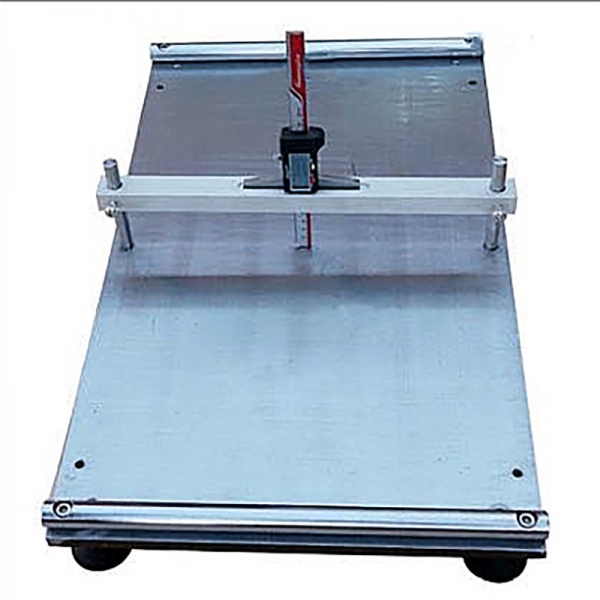

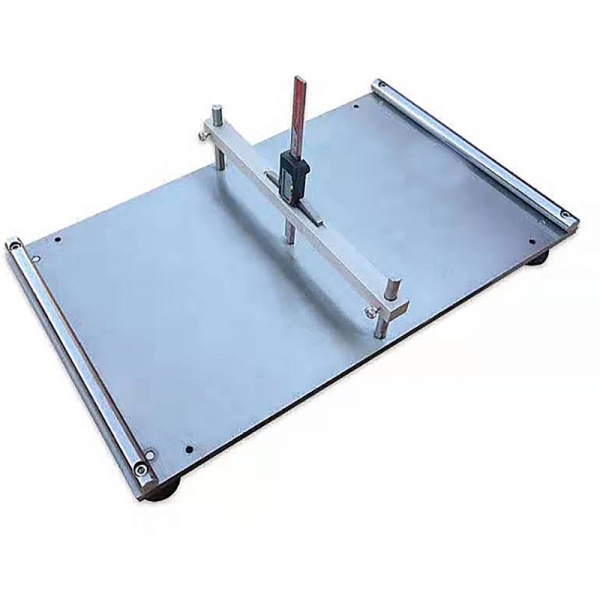

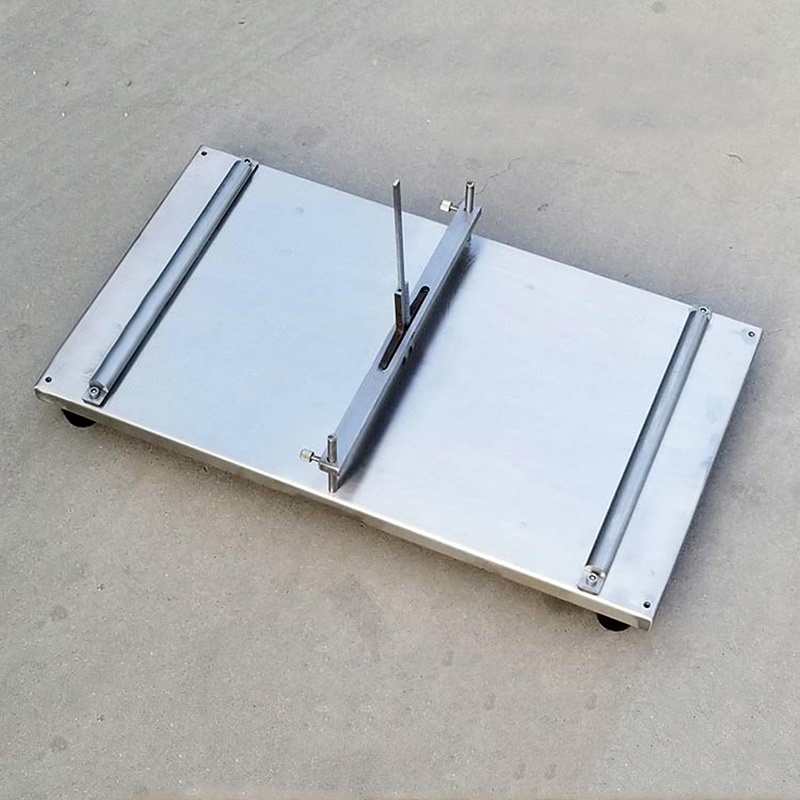

荣计达ND-600石膏受潮挠度测定仪

石膏受潮挠度测定仪是按照***JC/T799-2007标准对石膏的标准要求而设计制造的。荣计达仪器推出的多款新产品广受好评,我们一直以坚持创新、不懈努力的信念。继续努力,为广大用户提供更优质的产品和服务。

  • 型号: ND-600

  • 产品参数
  • 型号: ND-600



上海荣计达仪器科技有限公司**经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。**经营水泥实验仪器、混凝土实验仪器、公路土工实验仪器、干粉砂浆保温砂浆实验仪器、沥青防水材料实验仪器、油漆涂料实验仪器、无损检测等实验仪器。公司产品凭借过硬的质量、完善的售后服务、合理的价格畅销各大院校、检测单位、建材企业、工程建设单位。在消费者当中享有较高的地位和良好的口碑,用户遍布国内近三十个省市、自治区,并远销国外,与用户建立了长期稳定的合作关系。公司实力雄厚,重信用、守合同。有健全的管理制度和完善健全的质量管理体系。并有反应迅速、服务周到的售后服务系统。我们将懈努力、一如既往以优异的品质为客户服务。

Shanghai Rongjida Instrument Technology Co., Ltd. ** operates cement experiment equipment, concrete experiment equipment, highway geotechnical experiment equipment, dry mortar thermal insulation mortar experiment equipment, asphalt waterproof material experiment equipment, paint coating experiment equipment, nondestructive testing and other experimental equipment. ** Operating cement experiment equipment, concrete experiment equipment, highway geotechnical experiment equipment, dry mortar thermal insulation mortar experiment equipment, asphalt waterproof material experiment equipment, paint coating experiment equipment, non-destructive testing and other experimental equipment. Company products rely on excellent quality, perfect after-sales service, reasonable prices sell well in major universities, testing units, building materials enterprises, engineering construction units. It enjoys a high status and a good reputation among consumers, and has customers in nearly 30 provinces, cities, and autonomous regions in China, and has been exported to foreign countries. It has established long-term and stable cooperative relationships with users. The strength of the company, credit and contract compliance. Have a sound management system and a sound quality management system. And has a responsive and thoughtful after-sales service system. We will make unremitting efforts to serve our customers with excellent quality as always.

一,产品简介:
石膏受潮挠度测定仪是**检测仪器,按照**JC/T799-2007标准对石膏的标准要求而设计制造的。荣计达仪器推出的多款新产品广受好评,我们一直以坚持创新、懈努力的信念。继续努力,为广大用户提供更优质的产品和服务。
Product introduction:

Gypsum moisture deflection tester is a testing instrument designed and manufactured in accordance with the standard requirements of gypsum standard JC / T799-2007 for gypsum. A number of new products launched by Rongjida Instruments have been well received, and we have always adhered to the belief of innovation and hard work. Continue to work hard to provide customers with better products and services.

二,技术参数
1、装饰石膏板受潮挠度测定仪是根据JC/T799-2007标准设制的。
2、使用环境:水泥养护实验室:温度在(32+2),相对湿度(90+3)
3、装饰石膏板受潮挠度测定仪检测样品:500X250X9或600X300X11(mm)的3组。
4、按试验要求需要配3套夹具,每套夹具都配精度为0.01mm的专用尺和水平尺各一把。
5、将试块烘干,然后将每块试件正面向下,分别悬放在受潮扰度测定仪试验箱中三个试验架的支座上,支座**距为试件长度减去20mm,在文档为32度空气相对湿度90度条件下,讲试件放置48h,来源专用测量头。
6,外形尺寸:600*500mm
7,  重量:40kg
8,受潮挠度的测定仪规定的3块试件按5.3条烘干至恒重,然后将每块试件正面向下,分别悬放在受潮挠度测定仪试验箱中三个试验架的支座上,支座**距为试件长度减去 20mm。在温度为32±2℃,空气相对湿度为90%±3%条件下,将试件放置48h。然后将试件连同试验架从试验箱中取出,利用专用的测量头,分别测定每个试验架上试件中部的下垂挠度。计算3个块试件受潮挠度的平均值,并记录其中的大值,**lmm。
Second, the technical parameters

1. Moisture deflection measuring instrument for decorative gypsum board is designed according to JC / T799-2007 standard.

2. Operating environment: Cement conservation laboratory: temperature at (32 + 2), relative humidity (90 + 3)

3, decorative plaster board moisture deflection tester detection samples: 500X250X9 or 600X300X11 (mm) 3 groups.

4. According to the test requirements, three sets of fixtures are required, and each set is equipped with a dedicated ruler and a level ruler with an accuracy of 0.01mm.

5. Dry the test block, then suspend each test piece face down, and suspend it on the supports of the three test stands in the test box of the moisture disturbance tester. 20mm, with the document at 32 ° C and relative humidity of 90 ° C, the test piece is placed for 48h, and the source is a special measuring head.

6, overall size: 600 * 500mm

7, Weight: 40kg

8. The 3 test pieces specified by the moisture deflection tester are dried to a constant weight according to 5.3, and then each test piece is face down and suspended on the three test stands in the test box of the moisture deflection tester. On the support, the distance from the support ** is the length of the test piece minus 20mm. At a temperature of 32 ± 2 ° C and a relative humidity of 90% ± 3%, the test piece was left for 48 hours. Then remove the test piece from the test box together with the test rack, and use a special measuring head to measure the sagging deflection of the middle of the test piece on each test rack. Calculate the average moisture deflection of the three test pieces, and record the largest value, ** to lmm.
