防水卷材低温柔性试验仪

防水卷材低温柔性试验仪是专业检测仪器,根据中华人民共和国国家标准GB/T328.14-2007建筑防水卷材试验方法,第14部分:沥青卷材—低温柔性,对低温柔性试验装置的要求。是电动数显低温柔性试验仪的改款升级版,仪器采用不锈钢制作,独特的工艺保证了温度控制精度在 ±1℃,降温速度是普通冰柜的几倍,a低温度可达-40℃。测试仪也是采用不锈钢制作,操作简单,工作效率高。

  • 型号:DR-5

  • 产品参数
  • 型号:DR-5



一,产品简介:
防水卷材低温柔性试验仪是专业检测仪器,根据中华人民共和国国家标准GB/T328.14-2007建筑防水卷材试验方法,第14部分:沥青卷材—低温柔性,对低温柔性试验装置的要求。是电动数显低温柔性试验仪的改款升级版,仪器采用不锈钢制作,独特的工艺保证了温度控制精度在 ±1℃,降温速度是普通冰柜的几倍,a低温度可达-40℃。测试仪也是采用不锈钢制作,操作简单,工作效率高。
the product introduction:
Waterproof coil low temperature flexible tester is a professional testing instrument, according to the national standard GB/T328.14-2007 building waterproofing membrane test method, part 14: asphalt coil - low temperature flexibility, requirements for low temperature flexible test equipment . It is an upgraded version of the electric digital display low temperature flexible tester. The instrument is made of stainless steel. The unique process ensures the temperature control accuracy is ±1 °C. The cooling speed is several times that of the ordinary freezer, and the lowest temperature can reach -40 °C. The tester is also made of stainless steel, which is easy to operate and has high work efficiency.

二,技术参数:
★功率:1000 ( w) 220 (v)  AC
★试验温度:-20℃;-25℃或自行设定。分辨率0.1℃,精度0.2%。
★试验样品:厚度3;4;5mm;数量10个(150×25mm)
★试验速率:360±<40mm/分钟
★时间设定:60分钟(1分—99小时可调)
★外形尺寸:900*800*780mm
★重量约150kg
★使用环境温度:15--35°C
★使用环境湿度:小于80%RH
Second, technical parameters:
★ Power: 1000 (w) 220 (v) AC
★ Test temperature: -20 ° C; -25 ° C or set by yourself. The resolution is 0.1 ° C and the accuracy is 0.2%.
★ Test sample: thickness 3; 4; 5mm; quantity 10 (150 × 25mm)
★ Test rate: 360±<40mm/min
★Time setting: 60 minutes (1 minute - 99 hours adjustable)
★Dimensions: 900*800*780mm
★ Weight about 150kg
★Use ambient temperature: 15-35 °C
★Usage environment humidity: less than 80% RH


三,产品结构:
★主机全部采用304材质不锈钢制作,动力源采用永磁低速电机驱动,双动平行排列,可同时作正、反面各五个试样。
★控制器采用智能温度控制仪、数显时间继电器及相关元器件。
★控制器和主机相连接部分全部采用航空插头方式连接,该连接方式简单、方便、安全,并且有效的节省了仪器的使用空间。
Third, the product structure:
★The mainframes are all made of 304 stainless steel. The power source is driven by permanent magnet low-speed motor. The double-action is arranged in parallel, and five samples of positive and negative sides can be made at the same time.
★The controller uses intelligent temperature controller, digital display time relay and related components.
★ The connection between the controller and the main unit is all connected by aviation plug. The connection is simple, convenient and safe, and it saves the space of the instrument.
四,产品特点:
★仪器设有Ф20mm、Ф30mm、 Ф50mm试验用双动辊弯曲轴,可测厚度3,4,5mm的沥青防水卷材的低温柔性。
★数字显示试验温度、时间。
★上下行程限位,传动故障有脱扣保护,不会损坏传动机构。
★试验设置可自动控制温度.时间.计时报警。
Fourth, product features:
★The instrument is equipped with Ф20mm, Ф30mm, Ф50mm double-acting roller bending shaft for testing, which can measure the low temperature flexibility of asphalt waterproofing membrane with thickness of 3,4,5mm.
★ The number shows the test temperature and time.
★The upper and lower stroke limit, the drive fault has trip protection, will not damage the transmission mechanism.
★ Test settings can automatically control the temperature. time. Timing alarm.

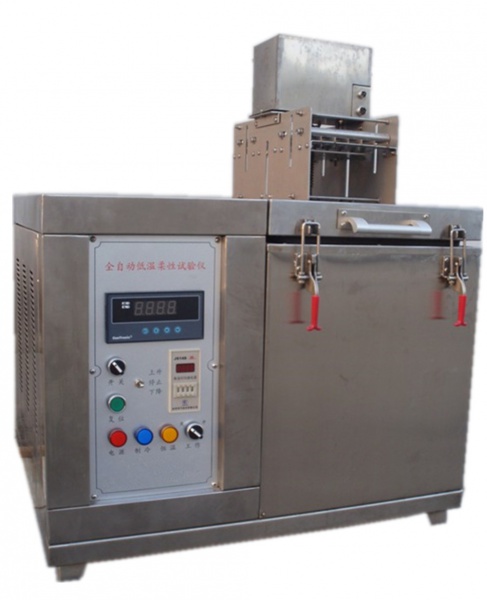

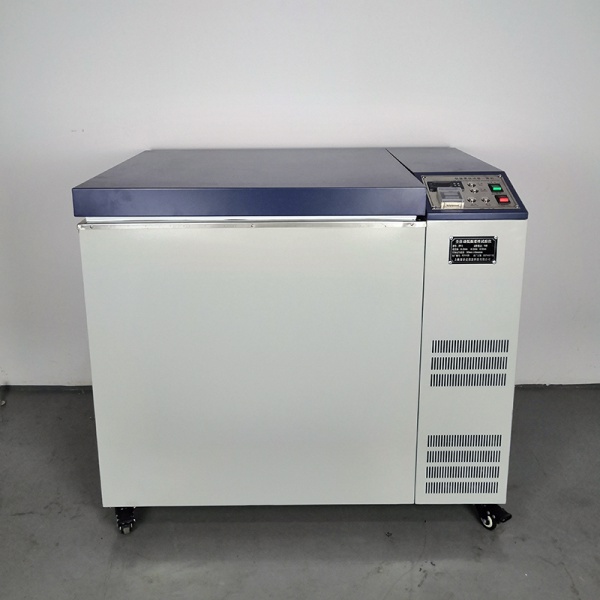

防水卷材低温柔性试验仪
