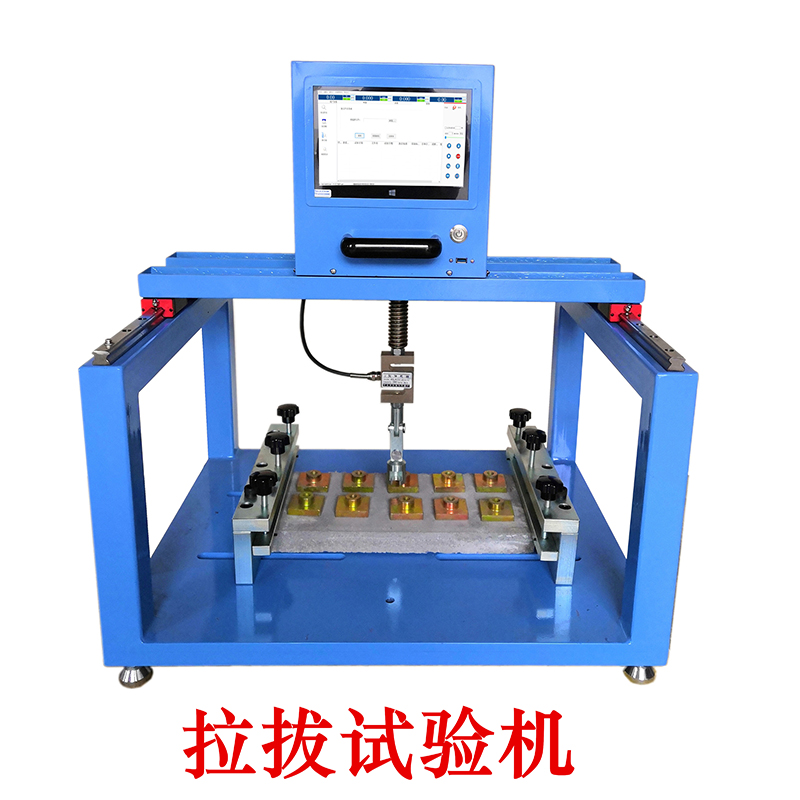

胶粘剂拉拔试验机

适用于干混砂浆、保温材料、陶瓷墙地砖胶粘剂、复层建筑涂料、建筑外墙用腻子的拉伸及粘结强度试验,试验机外观精美、工艺细腻,采用伺服控制系统,可实现匀速加载效率高稳定性好。

  • 型号:LBY-IV

  • 产品参数
  • 型号:LBY-IV



一,胶粘剂拉拔试验机产品简介:

适用于干混砂浆、保温材料、陶瓷墙地砖胶粘剂、复层建筑涂料、建筑外墙用腻子的拉伸及粘结强度试验,试验机外观精美、工艺细腻,采用伺服控制系统,可实现匀速加载效率高稳定性好。采用触摸屏控制,友好的人机操作界面。仪器内部设有行程限位和正负力值过载保护功能。具有测试速度可调、负荷测量精度高、操作方便等特点。适用于工厂、建筑工程质量检测站、建筑公司、产品质量检验所、科研院校、道路桥梁现场等,生产检验、开发研究等领域。

First, the adhesive drawing test machine product introduction:
It is suitable for dry-mixed mortar, thermal insulation material, ceramic wall and floor tile adhesive, multi-layer architectural coating, and tensile and bond strength test of putty for exterior wall of building. The test machine has beautiful appearance and exquisite craftsmanship. It adopts servo control system to achieve uniform loading. High efficiency and good stability. With touch screen control, friendly man-machine interface. The instrument has a travel limit and positive and negative force value overload protection. It has the characteristics of adjustable test speed, high load measurement accuracy and convenient operation. Applicable to factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, research institutes, road and bridge sites, production inspection, development and research.

二,胶粘剂拉拔试验机特点:

★嵌入式Windows操作系统环境的测控软件,实时显示测试数据、曲线、试验过程自动控制,试验结束自动求取试验结果,软件简便易用;

★采用多点匀速加载可满足不同标准试验要求。

★ 采用伺服控制系统,精确控制检测过程。

★ 采用触摸屏控制,便于人机对话。

★ 试验机内部设有行程限位和正负力值过载保护功能,防止误操作引起试验机的损坏。

★ 采用挂丁式拉拔头。装卸方便快速。

Second, the adhesive pull test machine features:
 Embedded Windows operating system environment measurement and control software, real-time display of test data, curves, automatic control of the test process, the test results are automatically obtained at the end of the test, the software is simple and easy to use;
Multi-point uniform loading can meet different standard test requirements.
 Adopt servo control system to accurately control the detection process.
 With touch screen control, it is convenient for human-machine dialogue.
 The test machine is equipped with a travel limit and positive and negative force value overload protection function to prevent damage to the test machine caused by misoperation.
 Adopt hang-style pull head. Easy to load and unload.

三,胶粘剂拉拔试验机技术参数:

A大拉拔力:10KN

★有效检测范围:A大实验力的1%-A

★负荷分辨率:1N

★负荷测量精度:示值的±1%以内

★拉拔速度:1mm-200mm/min

★拉伸范围:150mm

★试件范围:300×500mm

★试件A大厚度:70mm

★驱动方式:伺服电机驱动

★电源:单相交流220V / 50Hz,电机功率200 W

★外形尺寸:700×700×830mm

★重量:115KG

Third, the technical parameters of the adhesive drawing test machine:
Maximum drawing force: 10KN
 Effective detection range: 1%-A of the maximum experimental power
Load resolution: 1N
Load measurement accuracy: within ±1% of the indicated value
 Drawing speed: 1mm-200mm/min
 stretching range: 150mm
Scope of test piece: 300×500mm
Maximum thickness of test piece: 70mm
Drive mode: servo motor drive
 Power supply: single-phase AC 220V / 50Hz, motor power 200 W
Dimensions: 700 × 700 × 830mm
 Weight: 115KG






胶粘剂拉拔试验机
